The most recent edition to our existing OzoneLab™ OL80 Desktop Line (90° panel series) of Ozone Generators is OL80F/DST-2S Ozone Generator. This model was introduced upon special request from clients in need of dual ozone outlet ports. As all OzoneLab™ ozone generators, OL80F/DST-2S unit is designed to work in conjunction with Oxygen Flow Regulators and/or Flow Mass Controllers supplying oxygen output in flow range zero to 1LPM. ((0.005ml/min) - 1000ml/min), and has a built-in ozone destructor.

Pricing and model comparison chart

S = Standard | O = Optional | N/A = Not Applicable

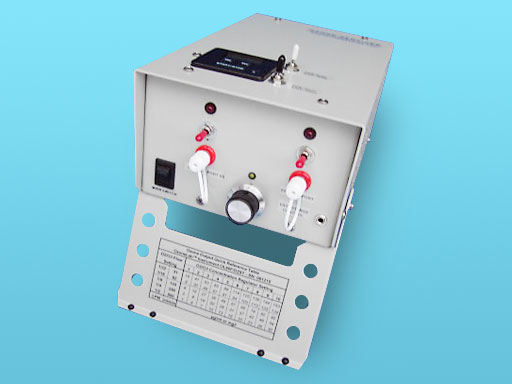

	OL80F/DST-2S 90° panel
Generator, Analyzer or Combination	Generator Only
360 Degree View Available	N/A
Setup Example Available	Yes
Model Picture
OL80 Ozone Module (Single Stage)	S
OL100 Ozone Module (Double Stage)	N/A
Flowmeter - 500cc/min (Standard) or Customer Specified	N/A
10-Step Ozone Output Regulation	S
10-Turn High Resolution Ozone Output Regulation	O (+110U$)
Combination of 10-Step Ozone Output Regulation and 10-Turn High Precision Ozone Output Regulation	N/A
External Ozone Output Regulation (EXT O3 Control Port)	S
Internal Ozone Destructor	S
Semi-Automatic Syringe Adapter with EXT Syringe Control Port	S
Countdown Timer & Buzzer	S
Ozone Analyzer Module Standard Range 0-200 µg/ml (0-15% by weight)	N/A
Repeatability (% scale) Zero Drift (% scale) Response (to 95% - Flow Dependant)	N/A N/A N/A
Compensation Pressure & Temp	N/A
LED Ozone Concentration Display	N/A
Microprocessor OzoneLab™ Programmable Controller Module	N/A
Banana Clip Ground Connection	N/A
Minimum & Maximum Ozone Gas Flow Requirements	0.005 LPM 1.0 LPM
Adjustable 0-5VDC Analog Signal Output	N/A
Software for Data Logging (COM1)	N/A
Luer Lock Kynar® Ozone Resist Fittings	S
Swagelok® Fittings	N/A
Wall Mounted Enclosure	N/A
Desktop Enclosure with Handle/Stand - Stackable	N/A
Desktop Enclosure with 45° front panel	N/A
Folding Table for Desktop Enclosure with 45° front panel	N/A
Desktop Enclosure with 90° front panel	S
Folding Table for Desktop Enclosure with 90° front panel	S
Instrument Weight	1.5kg/3.5Lb
Power Requirements	12VDC 0.7 Amp
100-240AC/12DC/4Amp Universal Adapter	Included
Marking	Yes
Base Price [U$]	$2,995.00

OzoneLab™ OL80 (90° panel series) Technical Data:

For applications exceeding outlined conditions of operation, please contact us for more information on custom produced instruments and accessories.

Ozone Output Information

Gas Ports:

Oxygen INLET Port:

• Color code:   Blue
• Oxygen gas is supplied to Oxygen Inlet Port located at the back side of the ozone generator.

• Color Code:   Red
• Port #1 (right hand side)
  • Preferable choice for filling syringes (Syringe Filling Port)
  • Can be activated by corresponding Syringe Filling Switch or via EXT Syringe Control
• Port #2 (left hand side)
  • Should be used for all secondary applications (water ozonation, etc.)
  • Can be activated only by corresponding Syringe Filling Switch

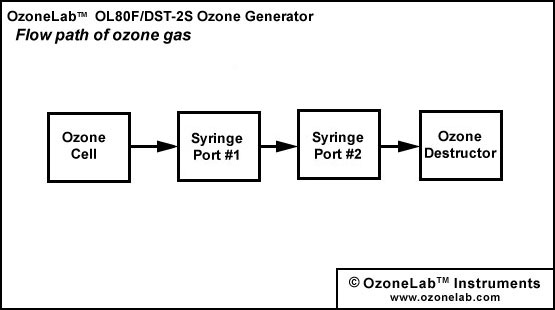

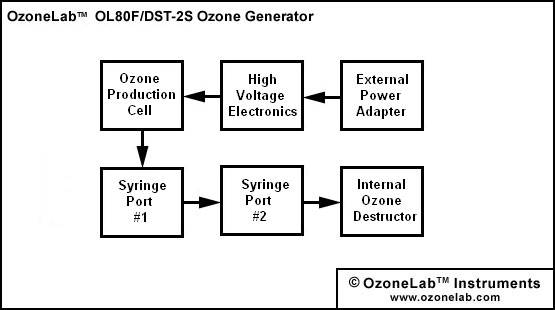

• When neither Syringe Filling Port (#1 or #2) is active, the ozone gas is channeled directly to the Ozone Destructor.

Built-in External Control Ports

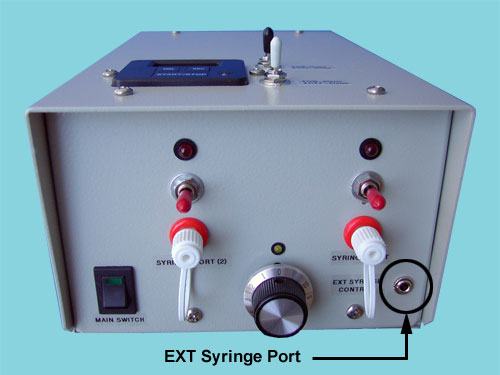

These pictures show the locations of the EXT Syringe Control Port and EXT O3 Control Port. Available options for these ports are available in our Accessories area.

EXT Syringe Port

EXT O3 Control Port

Most Frequently Ordered Model

OL80F/DST-2S 90° panel

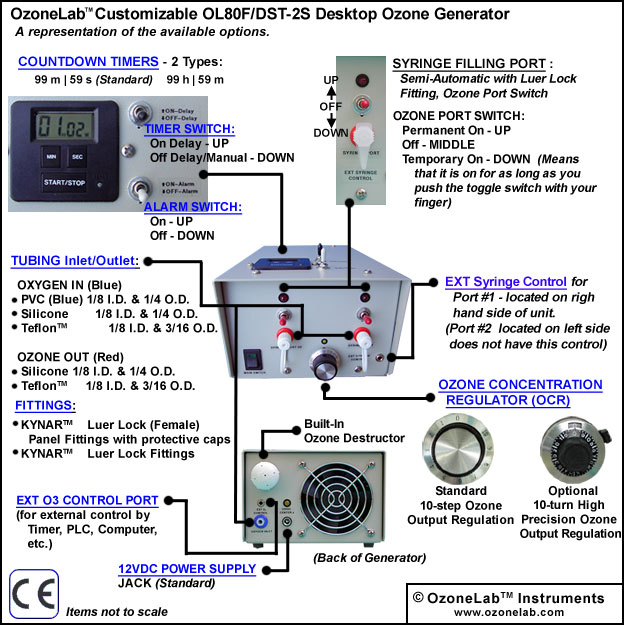

Ozone Generator Setup Examples

OzoneLab™ Mobility offers clients options for mobile situations. ABS Plastic Case. 240L Oxygen Tank & Flow Regulator Car 12VDC Adapter A full selection of optional ozone accessories is available to clients through our Ozone & UV Accessory Area.

Examples of External Ozone Production & Ozone Flow Control Devices

Foot Switch Control	OLW - Transmitter Module	C-30Z Ozone Monitor	Computer with OLS OzoneLab™ Software
