Retired Design Area

Due to the specific design and durability of the GE ozone generators, each instrument is able to provide ultra pure, highly concentrated ozone for individual needs, laboratories, and wide variety of special applications. GE ozone generators are designed to work in conjunction with Oxygen Flow Regulators 0 --> 4LPM.

GE30 12VDC
GE30FM 12VDC

The GE30FM Ozone Generator is a 12VDC unit which allows the use of ozonation equipment in locations where 12VDC is only available power service (car battery). Unit is supplied with International Universal power adapter which works with any input voltage in range 100-250VAC/50-60Hz and produces stabilized 12VDC suitable for powering GE30 instrument.

GE60FM 120VAC
GE60FM 12VDC

The GE60FM Ozone Generator is a 12VDC unit which allows the use of ozonation equipment in locations where 12VDC is only available power service (car battery). Unit is supplied with International Universal power adapter which works with any input voltage in range 100-250VAC/50-60Hz and produces stabilized 12VDC suitable for powering GE60 instrument. The GE60 Ozone Generator produces higher ozone output at higher flow rates then GE30.

Feature GE30FM/12VDC GE60FM/12VDC
Power supply Universal power adapter
(Input range 100-250VAC/50-60Hz - Output 12VDC)
Universal power adapter
(Input range 100-250VAC/50-60Hz - Output 12VDC)
Built-in flowmeter Yes
No - Optional
Yes
No - Optional
Cooling fan SUNON 21CFM SUNON 21CFM
Ozone generator enclosure size 5.75" x 11" x 3.75" 5.75" x 11" x 3.75"
Generator Weight 4.5 lbs / 2 kg 4.5 lbs / 2 kg
10 step O3 Output Regulation Yes Yes
100% glass enclosed electrode Yes Yes
Materials in contact with ozone Glass & Silicone Glass & Silicone
Ozone Test Report Included: Yes Yes
Regular Stock Item: Yes Yes

The above table outlines features of our standard GE Ozone Generators. Ozone Services is able to custom tailor an ozone generator (and ozonation systems) based around any of our standard GE ozone generator model.


Custom Built GE Ozone Generators
YOUR custom GE Ozone Generator starts with a phone conversation with us.

The above picture represents many of our custom options. Every clients needs are unique - by speaking with us, we will be able to tell you if we can fulfill YOUR specific requirements.

Custom modifications of standard GE ozone generators can include:

  • lowering/increasing the maximum ozone output
  • changing increments of ozone output regulation
  • addition of various countdown timers
  • incorporating a flowmeter with specific flow range to meet needs of your application(s). Standard GE30 & GE60 instruments are equipped with 50-500ml/min flow meters. Optional flow meters with the flow range:
    • 5-50ml/min
    • 10-100ml/min
    • 30-240ml/min
    • 50-500ml/min
    • 100-1000ml/min
    • 200-2500ml/min
    • 0.5-5LPM
    • 1-10LPM
    • 2-25LPM

can be supplied instead of our standard 50-500ml/min flow meters. This service is free of charge. We try to keep a regular stock of selected flow meters, however, there can be a 2-3 weeks delay in the delivery of the equipment, if the flow meter selected by the client will be sold out.

Technical staff of Ozone Services can assist you in the selection of different options. If you do not have clear understanding what should be the configuration of ozone generator & ozonation systems for your application, we can guide you step by step trough the selection process.

The lead time for our standard products is usually 1 day per one ozone system. If custom modifications are required, then the lead time is usually 5-10 business days...more in some extreme situations.


Ozone output:

All ozone generators are tested and calibrated separately. The Ozone Output Test Report is provided with each system. The following is a simple overview of the average ozone outputs produced by our GE ozone generators. The maximum numbers indicate the ozone output of each unit at a setting of #10.

Flow Rate
[LPM]
Flow Rate
[ml/min]
GE30/12VDC
[µg/ml]
GE60FM/12VDC
[µg/ml]
1/32 31 0 - 70 0 - 92
1/16 62 0 - 45 0 - 77
1/8 125 0 - 31 0 - 60
1/4 250 0 - 17 0 - 36
1/2 500 0 - 9 0 - 19
3/4 750 0 - 6 0 - 12
1 1000 0 - 4 0 - 10
Graphs Ozone Output Graphs

Ozone Output Graphs

Compare GE30 & GE60 12VDC

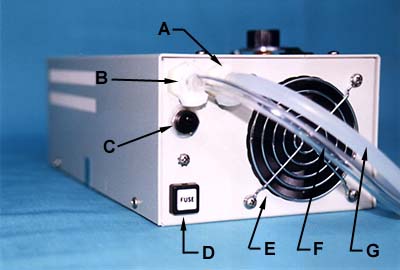

  1. Ozone Output / Quick Connector
  2. Oxygen Input / Quick Connector
  3. 12 Volt Jack Input
  4. Fuse
  5. Fan Finger Guard
  6. Oxygen Tubing (Clear)
  7. Ozone Tubing (Milky)
