OzoneLab™ UV Quartz Cuvette: Designed and produced by Ozone Services, BC, Canada Adjustable holding rings (Compatible with various UV instruments) 6-1/4” (159mm) active exposure length (high purity Quartz) Cuvette insert designed to allow gentle flow and even exposure to UV 2x24” flexible connection lines with standard Female and Male Luer Lock fittings 100% LATEX free All parts are securely attached and guaranteed to be LEAK free Each UV Cuvette is individually packaged in a 7x12” sterilizable pouch Sterilization of UV Cuvettes: Pre-sterilization process was done using: Ozone Concentration 90 [µg/ml] Sterilization by EtO by a certified facility Sterilization Validation done by an independent laboratory Standard Packaging: 30 Quartz Cuvettes per box Box size 12x12x7” (WxDxH) Box weight 1.25kg / 2.9Lbs. Shipping: Priority Mail, unless specified otherwise

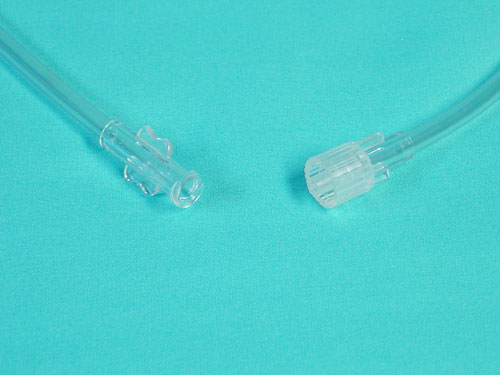

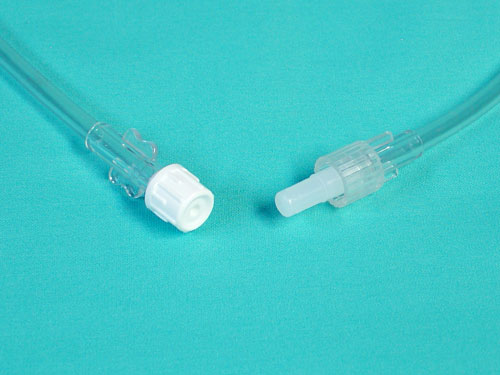

Protective Caps Attached Protective Caps Removed

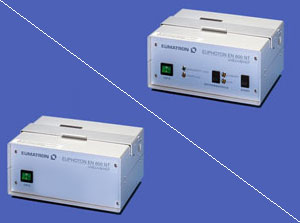

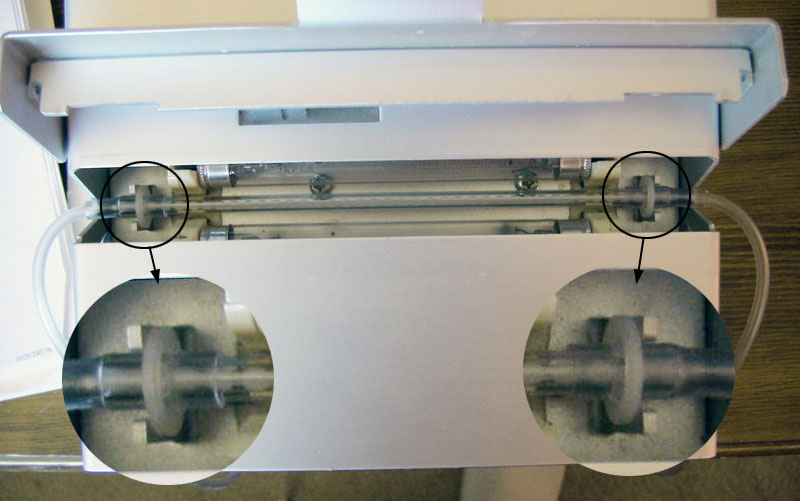

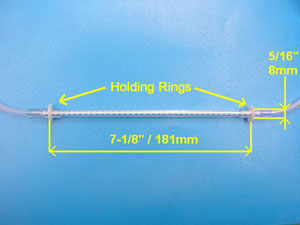

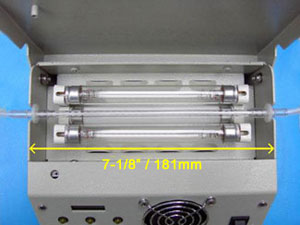

Compatibility with various UV instruments In standard configuration, two holding rings preventing axial movement of the OzoneLab™ UV Cuvette in the holding/exposure slot of OzoneLab™ UV instrument have the distance 7-1/8" (181mm). The holding rings can be easily removed or they may be spread wider apart to maximum distance of 7-1/2" (190mm). The above outlined simple modification makes our Latex Free OzoneLab™ UV Cuvette compatible with other UV instruments: OzoneLab™ UV4-8-12W unit (standard configuration) Eumatron units (UVB, HOT) [see image] Aquatron units (UVB, HOT)  [see image]
